Introduction to Special Types of Encoders
An encoder is a device that converts mechanical motion into electrical signals and is widely used in industries such as automation, robotics, CNC machining, automotive, and medical equipment. In addition to the common incremental and absolute encoders, there are several special types of encoders on the market, each with unique working principles and advantages. Below, we will introduce three special types of encoders: Magnetic Encoders, Optical Encoders, and Capacitive Encoders.
1. Magnetic Encoders
Schematic Diagram of the Magnetic Encoder Structure
Working Principle:
Magnetic encoders detect position, angle, or speed by measuring changes in magnetic fields. These encoders typically consist of two main components: a magnet (usually a permanent magnet) and a magnetic sensor (such as a Hall effect sensor). As the magnet rotates, it generates changes in the magnetic field, which the sensor detects and converts into an electrical signal.
There are two common types of magnetic encoders:
Incremental Magnetic Encoder: Outputs incremental signals relative to the initial position, typically used to measure rotational displacement.
Absolute Magnetic Encoder: Each position has a unique code, outputting an absolute position signal.
Advantages:
Strong resistance to interference: Magnetic encoders are highly resistant to environmental contaminants (such as oil, dust, and moisture) and can be used in harsh environments.
High reliability and long life: Magnetic encoders have no mechanical contact, resulting in less wear and longer service life.
Easy installation: Magnetic encoders are easy to integrate with other systems since they do not require precise alignment.
Disadvantages:
Lower resolution: Compared to optical encoders, magnetic encoders generally offer lower precision and are suited for applications where high precision is not critical.
Sensitive to external magnetic fields: Strong external magnetic fields can interfere with the operation of magnetic encoders.
Applications:
Automation production lines: Used to monitor the movement of conveyor belts, robotic arms, and other machinery.
Motor feedback systems: Provide feedback on the speed and position of electric motors.
Automotive industry: Used in electric steering systems, wheel speed sensors, and more.
Agricultural equipment: Utilized in vehicles like tractors and harvesters for motion detection.
2. Optical Encoders

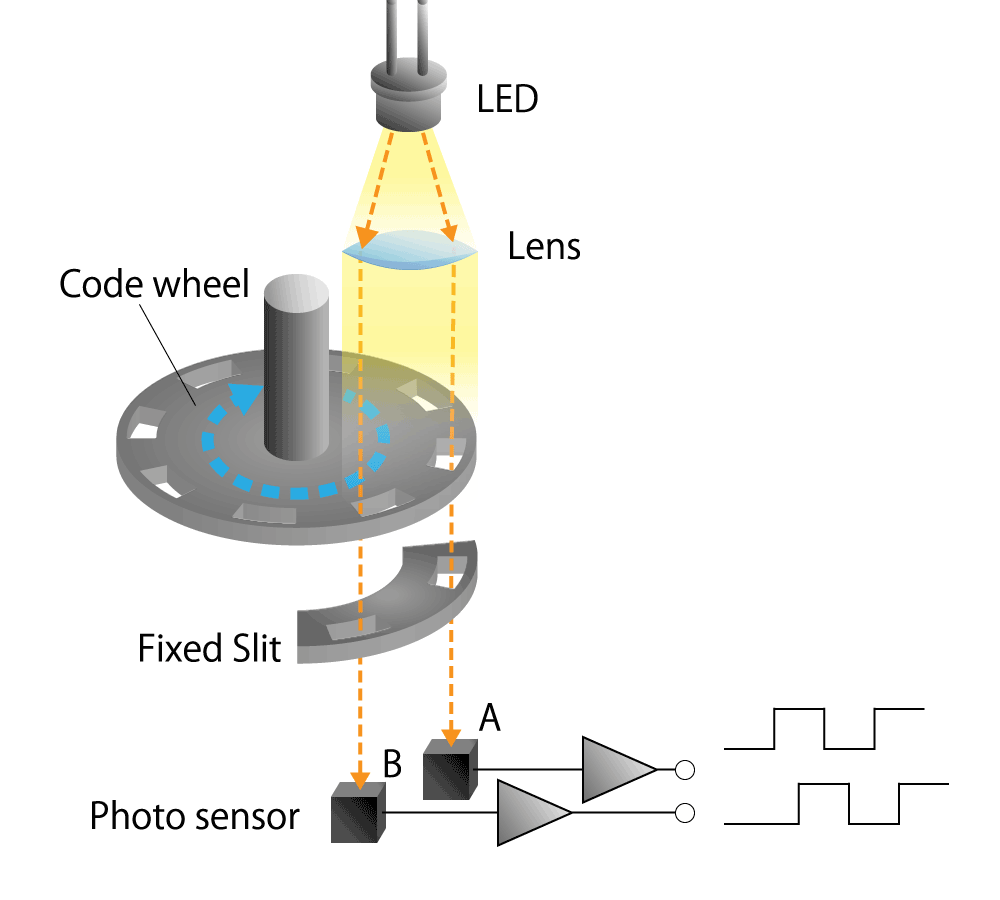

Schematic Diagram of the Optical Encoder Structure
Working Principle:
Optical encoders function by detecting changes in light patterns. These encoders use a light source (typically an LED) and an optical disc (usually transparent, etched with a pattern). The light source emits light, which passes through the transparent and opaque areas of the optical disc, and the light receiver (such as a photodiode) detects the light intensity variations, converting them into electrical signals. Based on the rotation of the disc, the sensor calculates the angle or position.
There are two main types of optical encoders:
Incremental Optical Encoder: Outputs incremental signals based on position changes, often used where periodic movement is measured.
Absolute Optical Encoder: Each position has a unique code, providing absolute position feedback.
Advantages:
High precision: Optical encoders offer extremely high resolution and can measure position with very fine detail, making them ideal for applications requiring high precision.
Non-contact measurement: Since optical encoders operate based on light, there is virtually no mechanical wear, resulting in a long lifespan.
High-speed response: Optical encoders are highly responsive, making them suitable for high-speed applications.
Disadvantages:
Sensitive to environmental factors: Optical encoders can be affected by dust, oil, moisture, and other contaminants, requiring a clean and controlled environment.
Higher cost: Due to their high precision and complex design, optical encoders are typically more expensive than magnetic encoders.
Requires precise installation: Accurate alignment is necessary for optical encoders to function correctly.
Applications:
CNC machines: Used to monitor the position and angle of tools and workpieces.
Robotics: Provides high-precision feedback for robotic movement control.
Measurement instruments: Used in electronic measuring devices and precision instruments.
Automation equipment: Used in various automated production lines for position and movement feedback.
3. Capacitive Encoders
Working Principle:
Capacitive encoders detect position by measuring changes in capacitance. They typically consist of two electrodes and a conductive disc. As the relative position of the electrodes changes, the capacitance between them also changes. This variation in capacitance is then converted into an electrical signal, representing the angular position or displacement.
Capacitive encoders can operate based on either contact or non-contact measurement, providing high sensitivity and fast response.
Advantages:
Non-contact measurement: Capacitive encoders, like optical encoders, have no mechanical contact, reducing wear and ensuring long service life.
High tolerance to harsh environments: Capacitive encoders can operate in high-temperature and high-humidity environments, making them suitable for extreme conditions.
High resolution: Capacitive encoders offer high precision and resolution, making them ideal for applications that require fine position measurement.
Disadvantages:
Prone to electromagnetic interference: Capacitive encoders are susceptible to electromagnetic interference (EMI), which can lead to signal distortion.
Higher cost: The complexity of the technology results in higher manufacturing costs.
Limited environmental applicability: While capacitive encoders can withstand high temperatures and humidity, they may not perform well in environments with strong electromagnetic fields or vibrations.
Applications:
High-precision position control: Used in applications that require extremely accurate position feedback, such as in aerospace, precision instruments, and scientific measurement.
Automation and robotics: Ideal for applications where precise motion control and feedback are needed.
High-temperature applications: Capacitive encoders are well-suited for industries such as metallurgy, glass manufacturing, and chemical processing, where high-temperature operation is required.
Summary
Each type of encoder has unique advantages and applications:
Magnetic encoders are ideal for harsh environments and applications requiring durability and reliability, though they are less precise than optical encoders.
Optical encoders offer high precision and speed, making them suitable for high-accuracy and high-speed applications, but they require clean environments to function effectively.
Capacitive encoders excel in non-contact, high-resolution measurements and are ideal for high-temperature environments, though they can be sensitive to electromagnetic interference.
Choosing the right type of encoder depends on specific application needs, such as precision, environment, speed, and durability.
